Services

CNC machining, assembly and logistics under one certified roof

From Swiss-type turned components to complete, sequenced assemblies — produced in Guadalajara, Mexico under IATF 16949, ISO 9001 and ISO 14001.

Precision machining

High-precision CNC machining, in house

Together with ST Soluciones Tecnológicas, our machining capacity covers everything from Swiss-type turning of small cylindrical parts to 5-axis milling of large plates and housings — under one quality system.

3- and 5-axis milling

Eight high-speed DMG Mori, Doosan and Haas machining centers, with special finishing tolerances to ±0.0002 in (±0.005 mm).

CNC turning

Swiss-type mill-turning plus CNC lathes for cylindrical components, backed by conventional lathes, mills and gear tooling for fast one-off work.

Cutting and forming

Flow waterjet cold cutting, Adira electrical bending, CNC grinding and sheet metal for enclosures and frames.

Materials we machine

AluminumCarbon and alloy steelStainless steelBrassUrethaneDelrinNylamidEngineering plastics

Machine park: Doosan DNM 4500 12K (×2) · DMG DMU 50 eco · DMG CMX 600X · Mori Seiki Duravertical 635 · Haas VF-3 · Haas VF-6/50TR · Yama Seiki SW32 · Haas SL-10T · Omnitec TH32 · Flow Mach 100 waterjet · Adira BB-3515 press brake · CNC grinding, conventional mills and lathes.

Swiss-type turning and machine specifications

Specifications and tolerances

Our Swiss-type mill-turning center produces small, complex parts complete in one setup, bar-fed for serial volumes. CNC lathes and machining centers cover larger diameters and prismatic parts.

Swiss-type CNC mill-turning center

Yama Seiki SW32

Positioning accuracy
±0.005 mm (±0.0002 in)
Repeatability
±0.003 mm (±0.0001 in)
Max. cutting diameter
32 mm (1.26 in)
Max. turning length
315 mm (12.40 in)
Feed
Bar feeder equipped
CNC turning center

Omnitec TH32

Positioning accuracy
±0.006 mm
Max. turning diameter
320 mm
Max. turning length
320 mm
Feed
Bar feeder equipped
CNC turning center

Haas SL-10T

Positioning accuracy
±0.025 mm
Max. turning diameter
279.4 mm
Max. turning length
355.6 mm
CNC machining center

Haas VF3

Positioning accuracy
±0.025 mm (±0.001 in)
Max. height
508 mm (20 in)
Max. length
1016 mm (40 in)
Parts in production

What comes off the line every day

Steel, stainless, brass, aluminum and engineering plastics — from single prototypes to daily serial volumes.

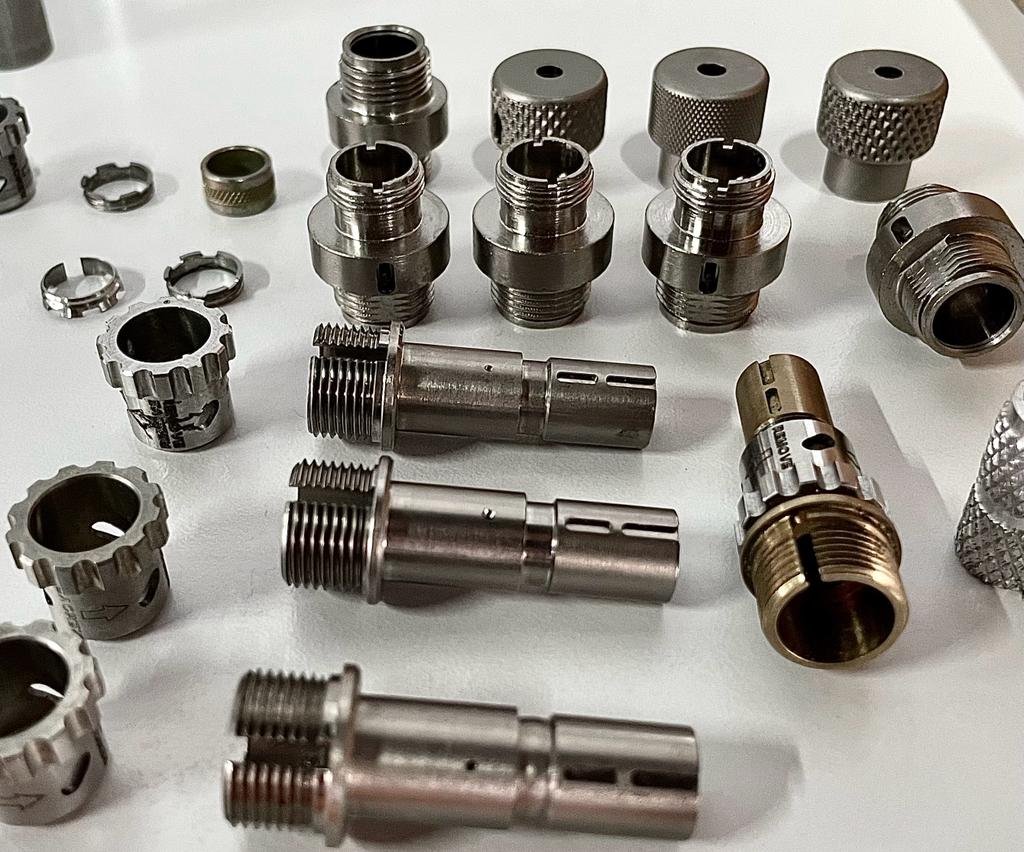

Connector bodies and knurled fittings
Threaded shafts, studs and pins
Bushings, spacers and sleeves
Milled components from our machining centers
Assembly and integration

An extension of your operations

Product assembly

Mechanical and electromechanical assembly under lean manufacturing, with press operations, flexible configuration and SMT capacity — managed from new product introduction to end of life.

System integration

Control panel build, harness design and fabrication, and mechanical and electrical integration of complete systems — including prototypes while a program is still moving.

  • Pneumatic presses for consistent, repeatable quality
  • Trained and certified operators working to IATF 16949
  • Press-assisted lines running in returnable containers
Operators at a press-assisted assembly line at Seeräuber
Components racked in build sequence, ready for delivery to the line
Logistics

Kitting, sequencing and warehousing

Free up shop floor and warehouse space. We store, kit and sequence your components and deliver them straight to the point of use.

  • Just-in-sequence delivery — sent directly to your assembly line, just in time
  • Kitting services — for your accessories and assembly lines, with repackaging and labelling
  • Light assembly — with storage and inventory management
  • Vendor-managed inventory — in an access-controlled warehouse for components and finished goods
Process design

Engineering that maximizes throughput

Our engineering staff designs and implements process solutions for both existing and new products, maximizing throughput and quality while minimizing cost.

  • Automation of previously manual processes
  • Product traceability solutions
  • Poka-yoke devices and systems that reinforce process quality
Engineering & turnkey automation
Supply chain development

We also manage the parts around the part

Turnkey programs or material on consignment: we manage the supply chain and the manufacturing process so the hand-off is seamless.

  • Component acquisition and supplier management on your behalf
  • Alternative suppliers in Mexico to substitute imports
  • Local supplier development and relocalization programs, exported finished to the USA
  • ERP compatible with SAP and other major systems, with EDI links
Quality

Certified systems, and the paperwork to prove every part

APQP through launch, SPC on running characteristics, CAPA discipline and traceability from raw material to shipped box.

IATF 16949:2016ISO 9001:2015ISO 14001:2015Positive S-Rating, Volkswagen Group
  • PPAP, submitted complete, with PSW sign-off
  • Process flow and FMEA
  • Control plans
  • MSA and gauge R&R
  • Capability studies
  • Dimensional reports and FAI

Have a drawing? Let’s quote it.

Send us your prints, volumes and requirements and our team will get back to you.
